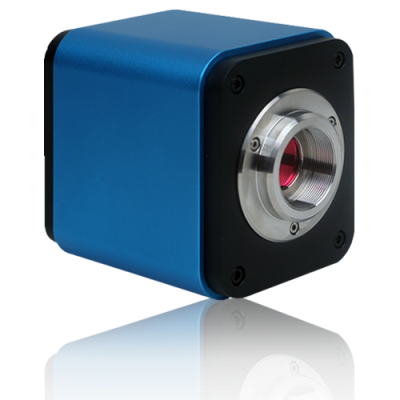

XCAM Series HDMI 720P Camera

XCAM 720P Series0
XCAM 720P Series1

XCAM Series HDMI 720P Camera Features

  • Through standard VGA 15pin or HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
  • High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
  • 1280 × 720 (720P) resolution to match the current high-definition displayer on the market.
  • Supporting various OSD cursors which can be toggled On/Off (functions shift as users press the button). The OSDs including: scale, double horizontal line, double vertical line, double cross line, Tri-cross line.

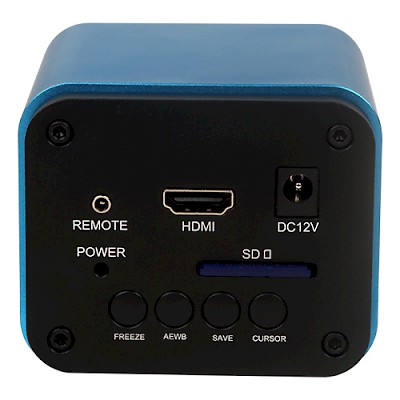

  • The other function buttons including automatic white balance and exposure on/off (AEWB), saving images to SD card (SAVE), video stream and freeze on/off (FREEZE), remote image snapshot controller to reduce the vibration blur (REMOTE).
  • For the above characteristic and technical features, which utmost meet various applications and widely apply to industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.

XCAM Series VGA or HDMI CMOS Camera

Order Code Sensor & Size(mm) Pixel(μm) G Responsivity
Dynamic range
SNRmax
FPS/Resolution Binning Exposure

XCAM0720PHA
XP00720HA

MT9P031(C)
1/2.5" (5.70x4.28)

2.2x2.2

1.4 V/lux-sec
70.1dB
38.1dB

30@1080x720

1x1

0.21ms~33ms

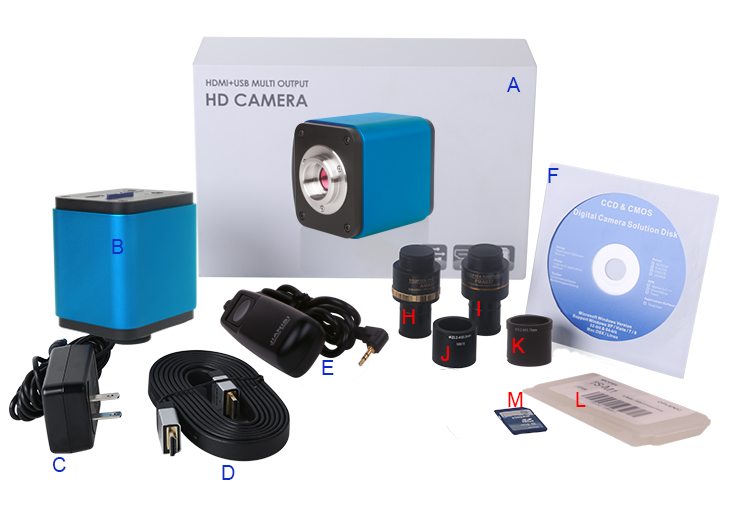

Packing Information for HDMI 720P CMOS Camera

Packing Information for HDMI 720P camera

Standard Packing List

A

Gift box : L:22.5cm W:17.0cm H:9.0cm (1pcs, 1.65Kg/ box)

B

HDMI 720P camera

C

Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

D HDMI Cable
E 2.5mm Headphone Jack Remote Image Save Switch

F

CD (Driver & utilities software, Ø12cm)

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

Adjustable
lens
adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

I

Fixed
lens adaptor

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

J

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

K

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

L

Calibration Kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
M SD Card(4G or 8G)

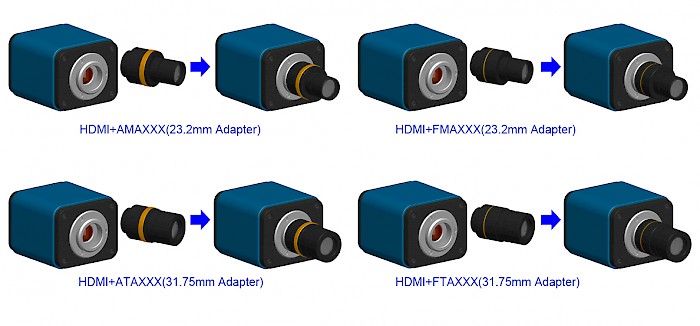

Extension of HDMI 720P Camera  with Microscope or Telescope Adaptor

Extension Picture

C-mount Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera



Telescope Camera:
