SCMOS Series USB2.0 Eyepiece Camera

SCMOS Series0

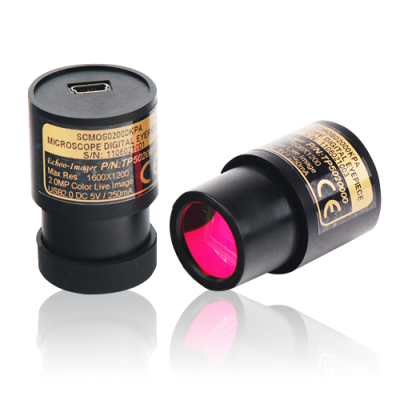

SCMOS Series USB2.0 Eyepiece Camera

  • Microscope eyepiece camera with 23.2 diameter and compact size;
  • Easy to extend to C or CS- Mount camera with high quality lens(optional);
  • High-quality camera with Aptina CMOS sensor;
  • Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
  • High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
  • With advanced video & image processing application ToupView;
  • Custom programmable with SDK provided;

SCMOS Series USB2.0 CMOS Camera Dimension

The SCMOS Camera body, made from aluminum alloy blackening, ocular ousing:Dia.27.2 X 40mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

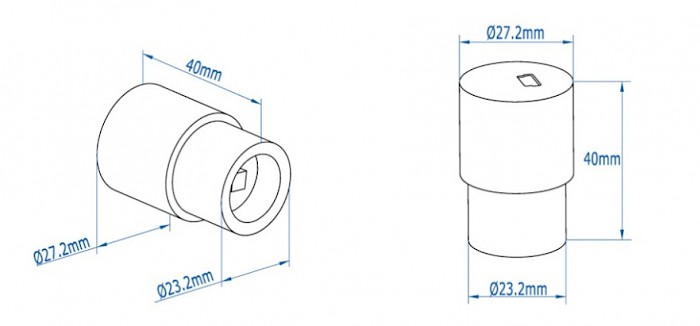

Drawing for SCMOS Series Camera

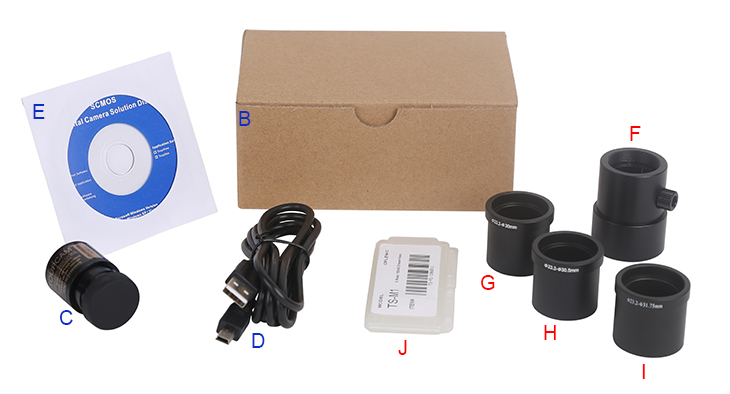

Packing Information for SCMOS Series USB2.0 CMOS Camera

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:14.5cm W:9.5cm H:6.0cm  (0.25~0.35Kg/ box)

C

SCMOS series USB2.0 C-Mount camera

D

High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m

E

CD (Driver & utilities software, Ø8cm)

Optional Accessory
F C-Mount Adapter Housing:108027(HS502)

G

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

H

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

I

108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

J

Calibration Kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
