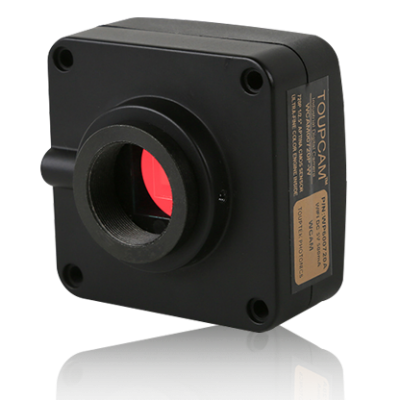

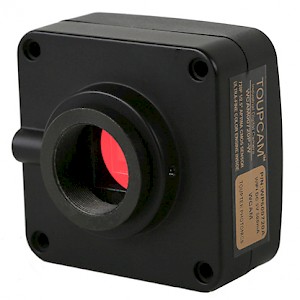

WCAM Series C-mount WIFI Camera
WCAM Series C-mount WIFI Camera
- Standard C-Mount camera with Aptina CMOS sensor;
- Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems;
- Streams images to several devices simultaneously;
- Integrated zinc aluminum alloy housing;
- Ultra-Fine color engine with perfect color reproduction capability;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/OSX multiple platform SDK;
- Native C/C++, C#, DirectShow, Twain Control API;
WCAM Series WIFI CMOS Camera Dimension
| The WCAM body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
 |
|

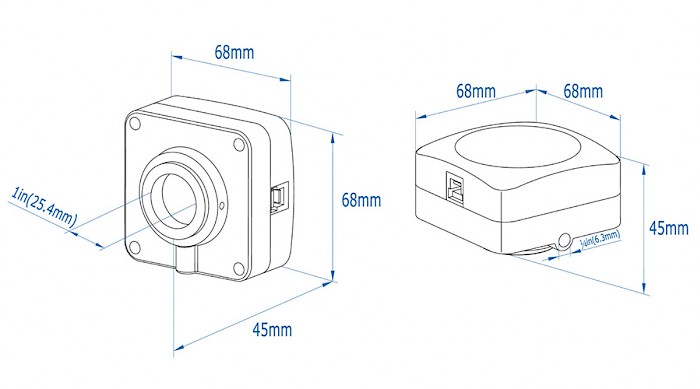

Drawing for WCAM Camera |
Packing Information of WCAM Series WIFI CMOS Camera
 |
|
WCAM Series WIFI CMOS Camera Packing Information |

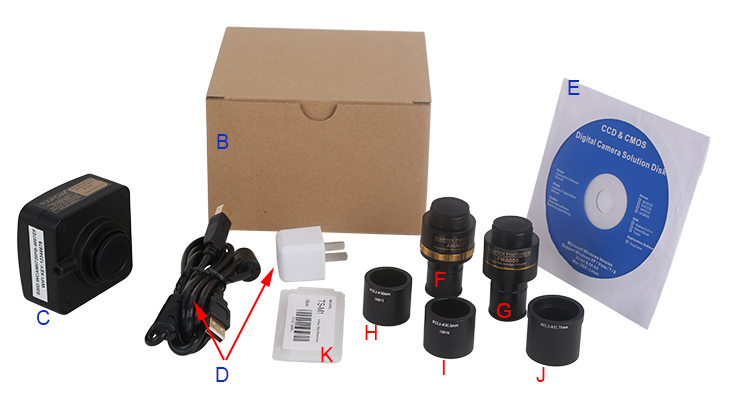

| Standard Camera Packing List | ||||
|---|---|---|---|---|
|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 11.4~14Kg/ carton, 0.045m3), not shown in the photo |
|||
|
B |
Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box) |
|||
|
C |
WCAM series USB2.0 C-mount CMOS camera |
|||
|
D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m(for PC power only) or with USB charger |
|||
|
E |
CD (Driver & utilities software, Ø12cm) |
|||
| Optional Accessory | ||||
|
F |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
|
C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
|||
|
G |
Fixed |
C-mount to Dia.23.2mm eyepiece Tube |
108005/FMA037 |
|
|
C-mount to Dia.31.75mm eyepiece Tube |
108011/FTA037 |
|||
| Note： For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
|
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
|
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
|
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |||
|
K |
Calibration Lit |
106011/TS-M1(X=0.01mm/100Div.)； 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||

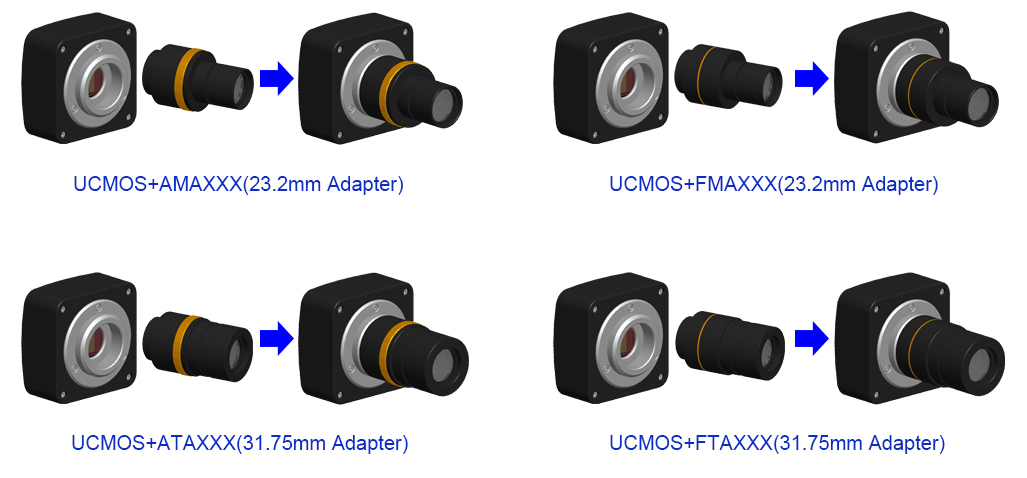

Extension of WCAM Series Camera with Microscope or Telescope Adaptor
|
Application |
Picture |
|
|---|---|---|
|
C-mount Camera |
|
Machine vision; Medical imaging; |
|
Microscope Camera |
|
|
|
Telescope Camera |
||
