S3CMOS Series USB3.0 CMOS Eyepiece Camera
S3CMOS Series USB3.0 Eyepiece Camera
- Microscope eyepiece camera with 23.2 diameter and compact size;
- Easy to extend to C or CS- Mount camera with high quality lens(optional);
- High-quality camera with Aptina CMOS sensor;
- Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
- High-speed USB3.0 interface and high frame rate video display keep the screen smooth without interruption;
- With advanced video & image processing application ToupView;
- Custom programmable with SDK provided;
S3CMOS Series USB3.0 CMOS Eyepiece Camera Dimension
| The S3CMOS Camera body, made from aluminum alloy blackening, ocular ousing:Dia.32 X 56mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
 |
|

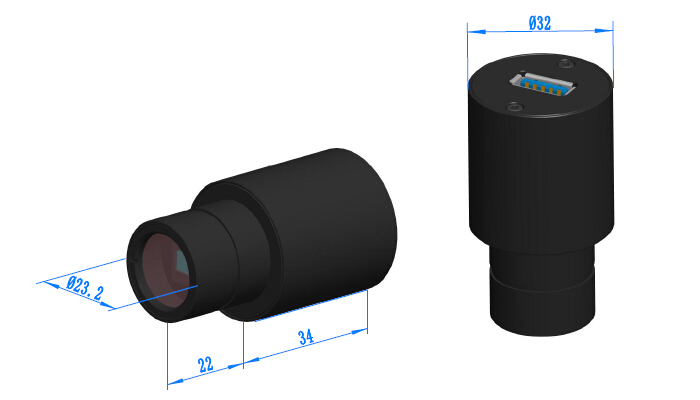

Drawing for S3CMOS Series Camera |
Packing Information for S3CMOS Series USB3.0 CMOS Camera

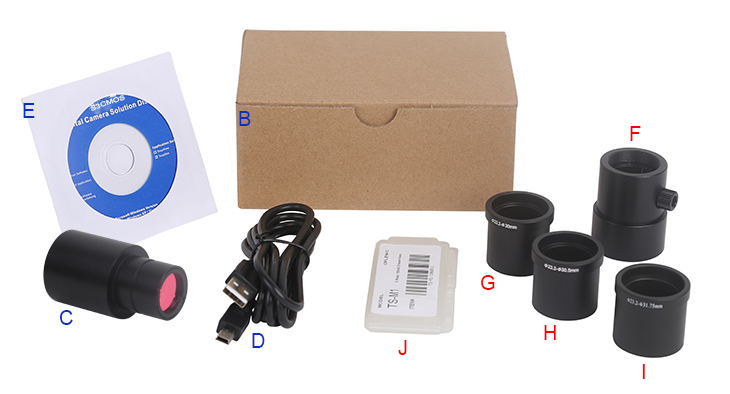

| Standard Camera Packing List | ||||
|---|---|---|---|---|
|
A |
Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo |
|||
|
B |
Gift box L:14.5cm W:9.5cm H:6.0cm (0.25~0.35Kg/ box) |
|||
|
C |
S3CMOS series USB3.0 C-Mount camera |
|||
|
D |
High-Speed USB3.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m |
|||
|
E |
CD (Driver & utilities software, Ø8cm) |
|||
| Optional Accessory | ||||
| F | C-Mount Adapter Housing:108027(HS502) | |||
|
G |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
|
H |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
|
I |
108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |||
|
J |
Calibration Kit |
106011/TS-M1(X=0.01mm/100Div.)； 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||
