U3CCD Series C-mount USB3.0 CCD Camera
U3CCD is an ExView HAD CCD series camera. It adopts Sony ExView HAD CCD sensor as the image-picking device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. uses EXCCD for simplicity. USB3.0 is used as the data transfer interface.
U3CCD hardware resolutions range from 2.8M to 6M and come with the integrated CNC aluminum alloy compact housing.
U3CCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The U3CCD can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
The U3CCD characteristic is as follows:
- Standard C-Mount camera with SONY ExView HAD CCD II sensors from 2.8M ~ 6M;
- IR-CUT Coated Windows
- Up to 1 hour long time exposure;
- USB3.0 5Gbit/second interface ensuring high speed data transmission;
- Ultra-FineTM color engine with perfect color reproduction capability;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

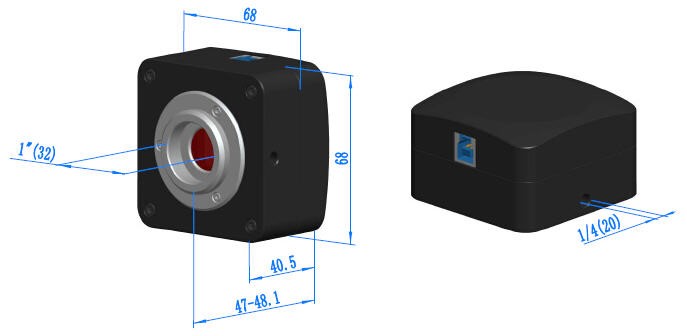

Dimension of U3CCD
The U3CCD body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Dimension of U3CCD

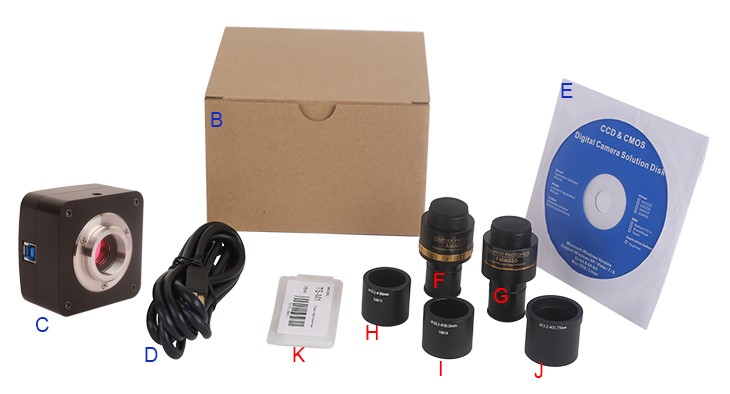

Packing Information for U3CCD
| Standard Camera Packing List | |||
|---|---|---|---|
| A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
| B | Gift box L:15cm W:15cm H:10cm (0.7~0.75Kg/ box) | ||
| C | U3CCD series USB3.0 C-mount CMOS camera | ||
| D | High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m | ||
| E | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||
| F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 |
| C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) |
108008/ATA037 108009/ATA050 108010/ATA075 |
||
| G | Fixed lens adaptor | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 |
| C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope) |
108011/FTA037 108012/FTA050 108013/FTA075 |
||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
| H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
| I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
| J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
| K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|

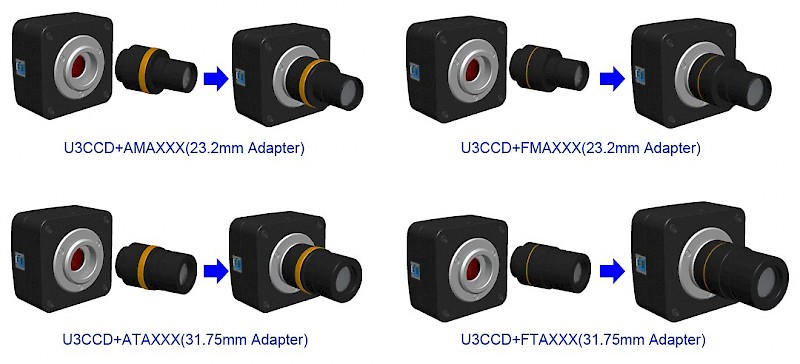

Extension of U3CCD with Microscope or Telescope Adaptor
| Extension | Picture | |
|---|---|---|
| C-mount Camera |  |
Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging; |
| Microscope Camera |  |
|
| Telescope Camera | ||
